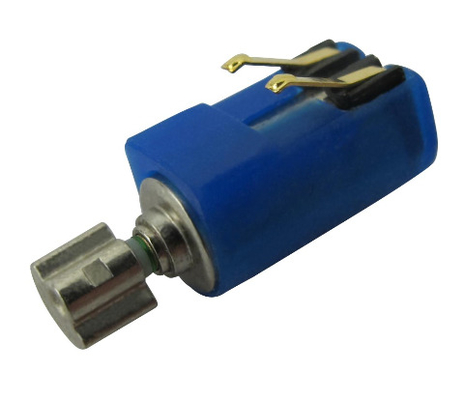

Wearable device S4Z08A146-53L 4x8 mm mini dc motor haptic micro cylindrical vibration coreless motor 0408

100 Pieces
MOQ
$0.96(100 - 999 Pieces) $0.93(1000 - 9999 Pieces) $0.89(>=10000 Pieces)
Price
Wearable device S4Z08A146-53L 4x8 mm mini dc motor haptic micro cylindrical vibration coreless motor 0408
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: S4Z08A146-53L
Warranty: 3months-1year
Type: Cylindrical Vibration Motor
Customized: No
Rated Speed (r/min): 13000
Nominal Voltage: 3.0
Application: Wearable Device, Mobile Phone, Medical Device Etc
Diameter (mm): 4.0 / 4.8
Body (mm): 8.7
Overall (mm): 12.7
Operating Voltage (Vdc RMS): 2.4~3.6
Rated Current MAX (mA): 30
Typical Current (mA): 17
Vibration Force (G): 0.95
Certification: None
Basic Infomation
Certification: None
Model Number: S4Z08A146-53L
Payment & Shipping Terms
Packaging Details: 4,000 pcs per carton, carton size 460mm*285mm*160mm 8,000 pcs per carton, carton size 460mm*285mm*305mm
Product Description
S4Z08A146-53L 4x8 mm mini dc vibration cylindrical motor micro coreless motor 0408
Product Description
S4Z08A146-53L is designed for application where low power consumption is the primary design consideration. The price point of this motor is higher than our standard vibration motors making it impractical for toys and other low cost consumer applications. The motor is surrounded by a rubber boot that allows it to be press fit into the desired location in your devices housing.
Electrical Data:
Show Me All Products (Shown below are only five models of them: S4Z05B064-01P; S4Z08B062-43P; S4Z08B037-452; S4Z08B019-60L; S4Z05B064-02P. If you want to know about other models, please email us.)
SAIBOW P/N
Installation method
Motor Size
Voltage
Current
Rated speed (rpm)
Vibe Force (G)
Dia / Hgt
Body
Overall
Operating(VDC)
Rated (ma) MAX
Typical* (ma) Avg.
Leadwire / FPC / SMD
(mm)
(mm)
(mm)
S4Z05B064-01P
Leadwire
4.0 / 4.0
5.5
9.3
2.4~3.6
22
17
8000
0.65
S4Z08B062-43P
Leadwire
4.0 / 4.0
8.2
12.8
2.4~3.6
12
9
8000
0.75
S4Z08B037-452
Leadwire
4.0 / 4.4
8.4
11.8
2.2~3.6
30
20
10000
0.65
S4Z08B019-60L
Spring
4.0 / 4.5
8.6
11.6
2.4~3.6
85
55
14000
1.1
S4Z05B064-02P
Leadwire
4.0 / 4.6
5.5
9.6
2.4~3.6
22
17
8000
0.65
The “typical current” is the average current from 20 motors selected at random from a given production lot. Copies of the test report showing the data collected for all 20 motors are available upon request.
MOUNTING CONFIGURATIONS OF VIBRATION MOTORS
LRA Structure:
Product Drawing:
APPLICATIONS:
You could find the right haptic solution with our below various vibrators: 7-10mm diameter coin type brushed vibration motors. 3-4mm height reflow solderable SMD type vibration motors 4-7mm diameter cylinder type brushed vibration motors. 5-9 diameter coin type brushless vibration motors.
