Home /Products/Phone Vibration Motor/Mini AC 1.8V Totally Enclosed Electric Coin Vibration Motor Vibration Flat Miniature Electric Mobile Phone Toy

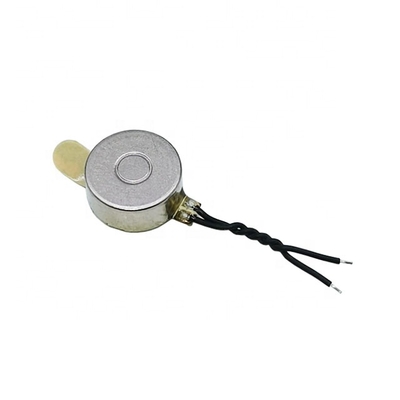

Mini AC 1.8V Totally Enclosed Electric Coin Vibration Motor Vibration Flat Miniature Electric Mobile Phone Toy

200 Pieces
MOQ
$1.15(200 - 9999 pieces) $1.07(10000 - 19999 pieces) $0.88(>=20000 pieces)
Price
Mini AC 1.8V Totally Enclosed Electric Coin Vibration Motor Vibration Flat Miniature Electric Mobile Phone Toy
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: STF-0934R
Warranty: 3months-1year
Type: Linear Motor
Vibration Direction: Z Axis
Size: 9MM
Motor Height: 3.4mm
Rated Current: 80mA Max
Response Time: 40ms Max
Falling Time: 40 Ms Max
Life: 2S On,1S Off,1 Million Cycles
Phase: Single-phase
Protect Feature: Totally Enclosed
AC Voltage: 1.8 V RMS AC SINE WAVE
Efficiency: IE 2
Frequency: 225HZ
Basic Infomation
Model Number: STF-0934R
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Product Description
Product Description
Model
STF-0934R
size
Φ9*3.4mm
Rated Voltage
1.8V RMS AC SINE WAVE
operating voltage
0~1.85 V RMS AC SINE WAVE
frequency
225±10 Hz
rated current
90 mA Max
vibration
≥1.0 G @100g jig
raising time
40ms Max
falling time
40 ms Max
life
2S on,1S off, 1 million cycles
terminal resistance
22±4Ω
insulation resistance
 1 MΩ Min
Product Application:
Micro coin vibration motor is widely used in dental equipment, beauty products, mobile phone, pager, personal care, health careequipment, massage device, massage stick, eye massage device, body massage device, vibrator, etc.
product usage
Recommend Products
Packing & Delivery
Standard export packing
FAQ
1.Q: Are these motor's parameter from the above list can be modified ?
A: Yes, motor's parameter can be customized. We can modify the rotation diection, motor's working voltage, lead wire length, leadwire matrial, rated speed, torque etc, and motor's shaft dimension can be modified too. We are pleased to make those modification,
the more details you provide, the more fluent our cooperation will be.
2.Q: How to order?
A:Please send us your purchase order by Email or call me, then make quotation according to your order, after confirm, we can makeyou Performa invoice under your request.
3.Q: Sometimes I don't know the exact required parameter, how should I choose a suitable model ?
A: We can make some suggestions as long as you provide your specific requirement. We need to know what kind of product will bethis model used for ? And what does the working condition look like (duty cycles and load status)? And how long is the motor'sexpected lifetime ? etc. Then we can a make full assessment according to that.
4.Q:Is it possible for you to develop new motors if we provide the tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll makeour evaluation to see if we can arrange or not.
5.Q:Can I get some samples first? How soon can I get the samples?
A: Yes, we can make samples, but normally sample is not for free (sample fee is charged varying from different places). And thesample making time depends on different types, for some small motor types( 3-10days is possible), while some gearbox motor shouldbe about 25days more or less. Additional, there will be about extra 2-3 days for the delivery time, and the shipping cost is notfor free too.
