ce,rohs approved 3.7v dc small dc motor
Advantage:
Mechanical:
See the attached CAD drawing:
Note:
Lead wire can be custom-made .
Data sheet :
| Two,Electrical Characteristic | ||||||||
| No | Item | Specifications | Remark | |||||
| 1 | Model Number | JMM1401 | ||||||
| 2 | Rated Voltage | 3.7V DC | ||||||
| 3 | The use of Voltage range | 2.0~ 3.7V DC | ||||||
| 4 | Rotation Direction | CW | ||||||
| 5 | The use of temperature range | -10℃~60℃≤60%RH | ||||||
| 6 | Rated Current | 50mA Max | ||||||
| 7 | Rated speed | 51000 ± 10% rpm | Under the rated voltage motor operates on load | |||||
| 8 | Stall Current | 850mA Max | Rated Voltage | |||||
| 9 | Starting Voltage | 0.5V DC | In any one position, voltage slowly rises | |||||
| 10 | Terminal Resistance | 3.5± 5%Ω | Measure between two terminals | |||||
| 11 | Insulation Resistance | 10MΩ | Ohmmeter, measure between the wires and the shell | |||||
| 12 | Appearance | The machine no damage and rusting | ||||||
| 13 | Weight | About 1.6g | ||||||
| 14 | Clearance between shafts | 0.10~0.20mm | ||||||

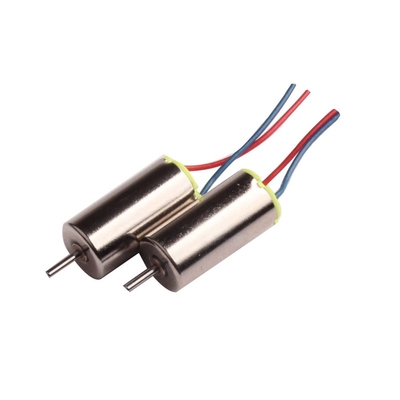

Photos & Drawing:
The product is packaged using a two-tier, each carton fitted 5000 pieces motors, the details is as below:
Inner plastic tray size 205*165*7(mm) per pack 50 pieces motors;
Outer carton size 330*215*350(mm) each fitted 100 pieces plastic trays.
If your requirements are not on our lists provided below, we are able to design, adjust,and manufacture the motors according to your requirements.
Motor Voltage Range : 1 to 24V DC as needed
Motor Speed Range: as customer's needed
Motor shaft can be changed, such as length, rear shaft, knurling, matched gear,
matched vibrator.
Motor rotation can be CW or CCW.
Also after confirmed specifications with us, we could offer samples , some of regular are free available.
Yichang Flourishing Import & Export Trade Co., Ltd.
100% Manufacturer, Fast Delivery, Free Sample, Reliable Quality.
Yichang Flourishing Import&Export Trade Co.,Ltd is a professional manufacturer to produce electric motors,located in Yichang Industrial Zone, Hubei province, China.
Our factory is specialized in permanent magnetic dc brush micro motor like :4*8mm,4*16mm,6*10mm,6*12mm,6*14mm,6*15mm,7*12mm,7*14mm,7*16mm,7*20mm,8*20mm,10*20mm etc. Coin type motor etc.
We have advanced equipment and machinery for production ,quality control supported by experienced experts and skilled workers. Excellent after-sales service is available for all of our products.
All of us hope to build a long-terms cooperation with customers all over the world, also, welcome to our factory!
| WHAT WE DO | |
| Designing | Testing |
|
Contact us for motor customisations.
Motor shaft (length, rear shaft, knurling,
matched gear,matched vibrator,CC or CCW). |
Extensive post-manufacturing testing.
Customised testing available. |
| Manufacturering | After-sale Services |
|
We own a factory specialises in Micro Motors.
Over 100 skilled workers ensure reliable product quality and fast delivery. |
Solve problems in positive way.
Improve our product quality with your valuable
suggestions and comments. |
Q: Is there a MOQ for your motors?
A: Yes. The MOQ is 1,000pcs for different models after sample approval. But it's also okay for us to accept smaller lots like a few dozens, hundreds after sample approval.
Q: Could you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q: Is it possible for you to develop new motors if we provide the tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not .
