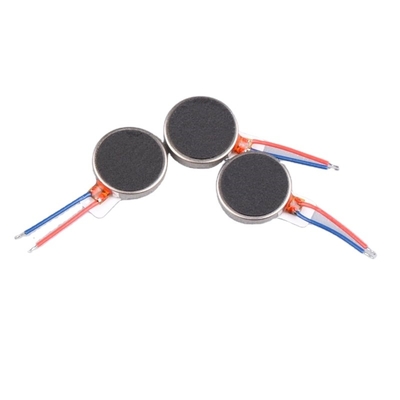

Best Quality for 1030 vibration motor , 3.0V DC Micro Coin Vibration Motor (JMM-BY1030L0020) is widely used for Dental equipment, Beauty product, Mobile Phone, Cell Phone, Pager, Personal care,Health product equipment ,Massager, Massage Rod, Eye Massager, Body Massager, Vibrator.etc.
SPECIFICATIONS FOR BEST QUALITY FOR 3.0V DC COIN TYPE MICRO MOTOR (JMM-BY1027L0020) | ||||||
Model Size | Motor diameter | mm | 10 | |||
Thickness | mm | 3.0 | ||||
Wire length | mm | 20 | ||||
Main performance parameters | Rated voltage | V | 3.0 | |||
Speed (max. & min.) | r/min | 10000~14000 | ||||
Rated current | mA | 80 | ||||
Customize parts | Dia /thickness | mm | Customised | |||
Wire length/Colour | mm/Red,Black,White | Customised | ||||
Rotation | CW/CCW | CW/CCW | ||||
1) Energy-saving:High energy conversion efficiency,more than 70%.
2) Reliable Operational Stability: Operates quietly and quickly with high efficiency and low resistance.
3) Low Noise : Starting and braking quietly, running with low noise.
4) High Speed : The rpm can reach 8000~12000±10%.
5) Fast Response:Rapid starting and braking with fast response, mechanincal time constant is less than 28 milliseconds. Some can reach 10ms or less.
* Inquiry and consulting support,design new product .
* Sample testing support.
* View our Factory.
* Any questions can solved .
* Engineers available to service overseas.
100% Response Rate
100% Response Rate
100% Response Rate
Packaging For Samples | ||
Size | 175(L) * 95(W) * 75(H)(MM) | |
Weight | 0.5KG | |
Packaging Details | The normal package is foam box(Size: 175L*95W*75H), inner use plastic bag or pack it according to customers special request. | |
Packaging For Quantity | ||
Size | 510 (L) * 300 (W) * 300 (H) | |
Weight | 9.5KG | |
Packaging Details | The normal package is carton box(Size: 500L*300W*300H). Inner use plastic tray (Size:205L*165W*5H),or pack it according to customers special request. | |
Q: Is there a MOQ for your motors?
A: Yes. The MOQ is 1,000pcs for different models after sample approval. But it's also okay for us to accept smaller lots like a few dozens, hundreds after sample approval.
Q: Could you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q: Is it possible for you to develop new motors if we provide the tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not .
